CFZ-TS-09
Description
Specification
Downloads
Product Guide
Description
- Industrial grade control knob
- Rigid body structure
- Rear plastic guard
- Powerful air flow
- Easy installation and maintenance
- Automatic Louvers are designed to disperse air in all directions.

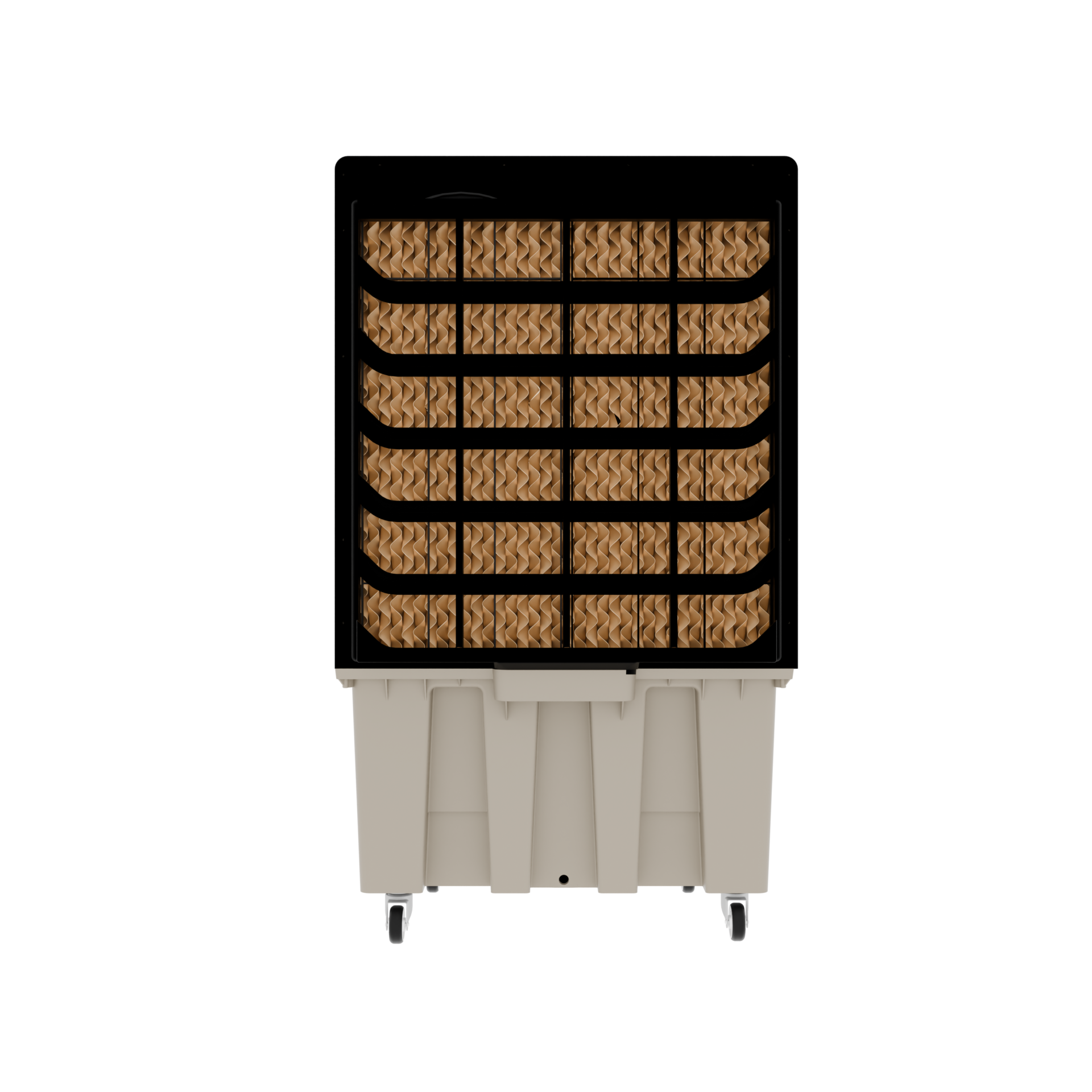

- High efficiency Honey Comb cooling pads with prefilters
Specification
| CFZ- TS- 09 | Specification |
| Water Tank Capacity | 120 L |
| Air Flow | 9,500 CMH |
| Fan Type | Axial Fan |
| Fan Size | 18 Inch 4 Blade |
| Motor Type | Single Phase 3 speed |
| RPM | 1385 RPM |
| Wattage | 340 W |
| Motor Power | 0.4 HP |
| Unit Size (mm) | 800*600*1390 mm |
| HC pad side size | 332*40*550 mm |
| HC pad Back size | 725*75*800 mm |
| Area coverage | 1500 sq. ft. |
| Net Weight Approx. | 24.54 Kg |
