Exhaust Fan N-C300DL
- 50″ exhaust fan application for poultry & livestock.
- High efficiency and airflow but energy saving.
- Strong housing frame structure and fan blades made in one peiece.
- Permanent-magnet synchronous (IE4) motor and AC motors (IE3) are optional.
- Sheet Molding Compound Fiberglass materials used.
Introduction

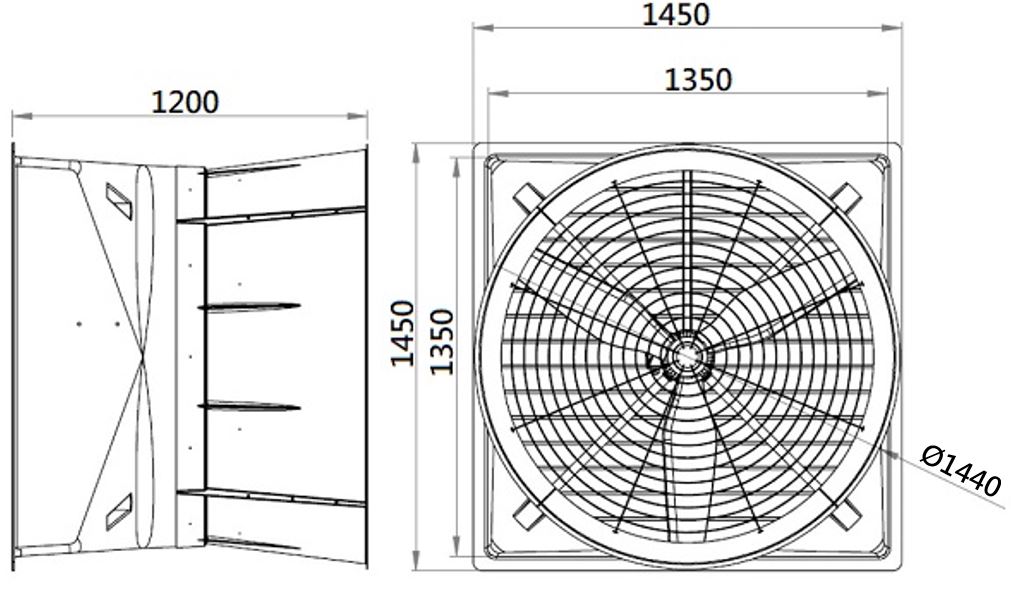

Fan Dimensions
| Model | 50″ N-C300DL |
| External Frame | SMC Fiberglass Housing |
| Fan Blades | 50″ 3 SMC Fiberglass Blades |
| Motor | 1.5HP PMSM Grade F IE4 |
| Number of Poles | 16 Poles |
| Rotating Speed | 680 RPM |
| Sound Volume | 75 dB (Detected from 3m near.) |
| Voltage | 1∮220V, 60Hz (Optional) |
| Current | 3.91 A |
| Power Consumption | 848 w/hr |
| Air Volume | 36900 CMH |
| Size | L145xW122xH145 cm |
| Weight | 99 kg |
